Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bag | |
| Availability Status | Obsolete | |
| Electrical Pathway | SPST-NO | |
| Switch Operation Mode | Off-Mom | |
| Pin Voltage Tolerance | 0.05A @ 24VDC | |
| Activator Mechanism Type | Plunger for Cap | |
| Attachment Mounting Style | Through Hole | |
| Vertical Activator PCB Height | 7.30mm | |
| Right-Angle Activator Length | - | |
| Activator Alignment Direction | Top Actuated | |
| Lead Termination Type | PC Pin | |
| Dimensional Outline Drawing | 12.00mm x 12.00mm | |
| Backlighting Feature | Non-Illuminated | |
| LED Illumination Shades | - | |
| Standard Illumination Volts | - | |
| Activation Pressure Required | 160gf | |
| Dust Water Resistance Rating | IP67 - Dust Tight, Waterproof | |
| Key Product Highlights | Sealed - Fully | |
| Ambient Temp Range | -35°C ~ 85°C |

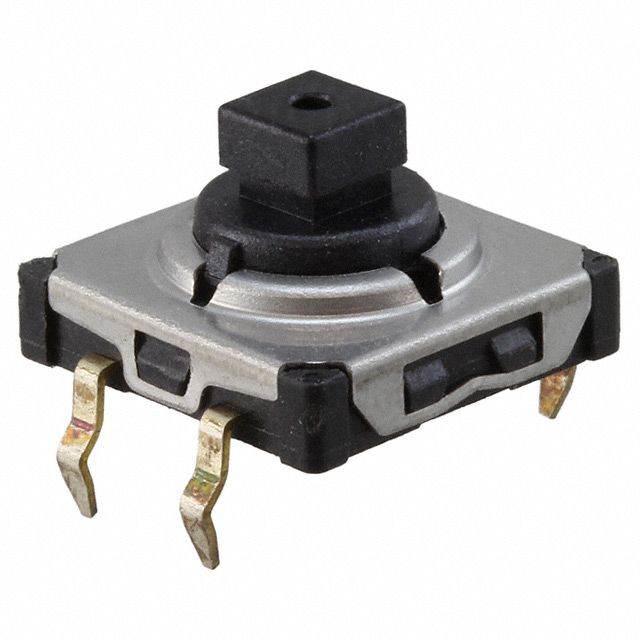

Description
Rises 7.30mm vertically above the PCB. Aligned with Top Actuated actuator orientation for precise placement. Incorporates a Plunger for Cap actuator type to fulfill the desired function. Configured for circuit type described as SPST-NO. Offers a contact rating at the voltage level of 0.05A @ 24VDC. Equipped with features categorized as Sealed - Fully. Provides Non-Illuminated brightness for improved visibility. Rated with IP IP67 - Dust Tight, Waterproof to safeguard against dust and moisture penetration. Mounting configuration Through Hole for structural stability. Pressure applied 160gf for ergonomic or mechanical operations. Temperature range -35°C ~ 85°C for environmental conditions impacting thermal efficiency. Shape outline 12.00mm x 12.00mm for device design and footprint. Type of housing Bag for safeguarding or transporting components. Product status Obsolete concerning availability and lifecycle. Modification in operation mode Off-Mom for electrical optimization. Type of termination PC Pin for connector or device.
