Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | FSMJM | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Obsolete | |
| Electrical Pathway | SPST-NO | |
| Switch Operation Mode | Off-Mom | |
| Pin Voltage Tolerance | 0.05A @ 24VDC | |
| Activator Mechanism Type | Rectangular Button | |
| Attachment Mounting Style | Surface Mount | |
| Vertical Activator PCB Height | 4.30mm | |
| Right-Angle Activator Length | - | |
| Activator Alignment Direction | Top Actuated | |
| Lead Termination Type | SMD (SMT) Tab | |
| Dimensional Outline Drawing | 6.00mm x 3.50mm | |
| Backlighting Feature | Non-Illuminated | |
| LED Illumination Shades | - | |
| Standard Illumination Volts | - | |
| Activation Pressure Required | 100gf | |
| Dust Water Resistance Rating | - | |
| Key Product Highlights | - | |
| Ambient Temp Range | -35°C ~ 85°C |
Description

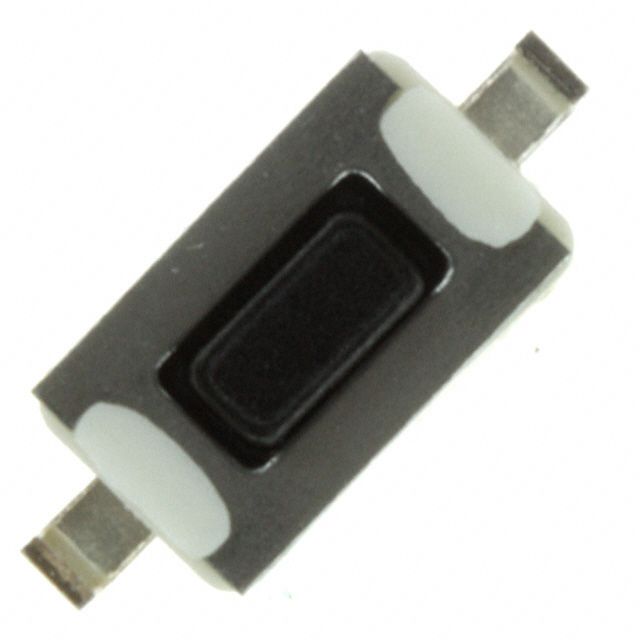

Rises 4.30mm vertically above the PCB. Aligned with Top Actuated actuator orientation for precise placement. Incorporates a Rectangular Button actuator type to fulfill the desired function. Configured for circuit type described as SPST-NO. Offers a contact rating at the voltage level of 0.05A @ 24VDC. Provides Non-Illuminated brightness for improved visibility. Mounting configuration Surface Mount for structural stability. Pressure applied 100gf for ergonomic or mechanical operations. Temperature range -35°C ~ 85°C for environmental conditions impacting thermal efficiency. Shape outline 6.00mm x 3.50mm for device design and footprint. Type of housing Bulk for safeguarding or transporting components. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component FSMJM. Modification in operation mode Off-Mom for electrical optimization. Type of termination SMD (SMT) Tab for connector or device.
