Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 10000 | ₹ 48.21000 | ₹ 4,82,100.00 |
| 7000 | ₹ 49.30000 | ₹ 3,45,100.00 |
| 5000 | ₹ 50.40000 | ₹ 2,52,000.00 |
| 3000 | ₹ 52.20000 | ₹ 1,56,600.00 |
| 2000 | ₹ 53.75000 | ₹ 1,07,500.00 |
| 1000 | ₹ 56.63000 | ₹ 56,630.00 |
| 500 | ₹ 59.81000 | ₹ 29,905.00 |
| 250 | ₹ 63.29000 | ₹ 15,822.50 |
| 100 | ₹ 68.31000 | ₹ 6,831.00 |
| 25 | ₹ 76.62000 | ₹ 1,915.50 |
| 10 | ₹ 82.40000 | ₹ 824.00 |
| 1 | ₹ 97.21000 | ₹ 97.21 |

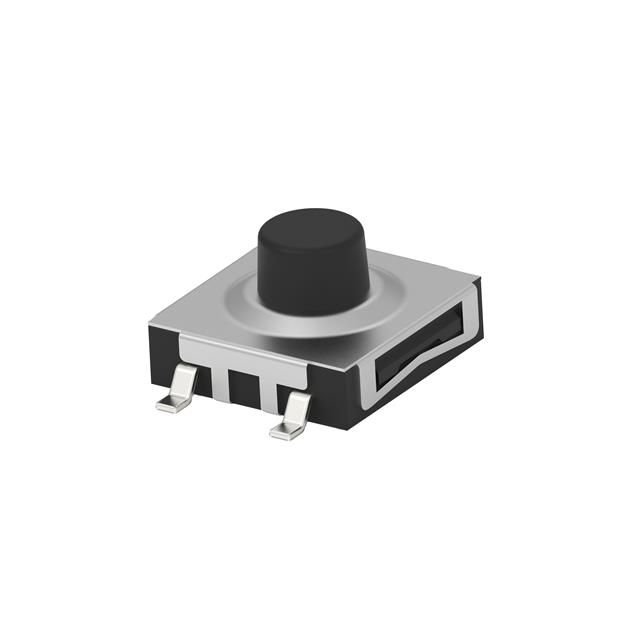

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | Tariff may apply if shipping to the United States | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Electrical Pathway | SPST-NO | |
| Switch Operation Mode | Off-Mom | |
| Pin Voltage Tolerance | 0.05A @ 24VDC | |
| Activator Mechanism Type | Standard | |
| Attachment Mounting Style | Surface Mount | |
| Vertical Activator PCB Height | 4.30mm | |
| Right-Angle Activator Length | - | |
| Activator Alignment Direction | Top Actuated | |
| Lead Termination Type | Gull Wing | |
| Dimensional Outline Drawing | 7.60mm x 7.30mm | |
| Backlighting Feature | Non-Illuminated | |
| LED Illumination Shades | - | |
| Standard Illumination Volts | - | |
| Activation Pressure Required | 160gf | |
| Dust Water Resistance Rating | IP67 - Dust Tight, Waterproof | |
| Key Product Highlights | Sealed - Fully | |
| Ambient Temp Range | -35°C ~ 85°C |
Description
Rises 4.30mm vertically above the PCB. Aligned with Top Actuated actuator orientation for precise placement. Incorporates a Standard actuator type to fulfill the desired function. Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Configured for circuit type described as SPST-NO. Offers a contact rating at the voltage level of 0.05A @ 24VDC. Equipped with features categorized as Sealed - Fully. Provides Non-Illuminated brightness for improved visibility. Rated with IP IP67 - Dust Tight, Waterproof to safeguard against dust and moisture penetration. Mounting configuration Surface Mount for structural stability. Pressure applied 160gf for ergonomic or mechanical operations. Temperature range -35°C ~ 85°C for environmental conditions impacting thermal efficiency. Shape outline 7.60mm x 7.30mm for device design and footprint. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Modification in operation mode Off-Mom for electrical optimization. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. Type of termination Gull Wing for connector or device. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications.
