Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 50 | ₹ 10,995.70000 | ₹ 5,49,785.00 |
| 25 | ₹ 11,501.24000 | ₹ 2,87,531.00 |
| 10 | ₹ 12,203.62000 | ₹ 1,22,036.20 |
| 1 | ₹ 14,154.43000 | ₹ 14,154.43 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 14,160.79000 | ₹ 14,160.79 |
| 10 | ₹ 12,209.91000 | ₹ 1,22,099.10 |
| 25 | ₹ 11,505.92000 | ₹ 2,87,648.00 |
| 50 | ₹ 11,000.40000 | ₹ 5,50,020.00 |

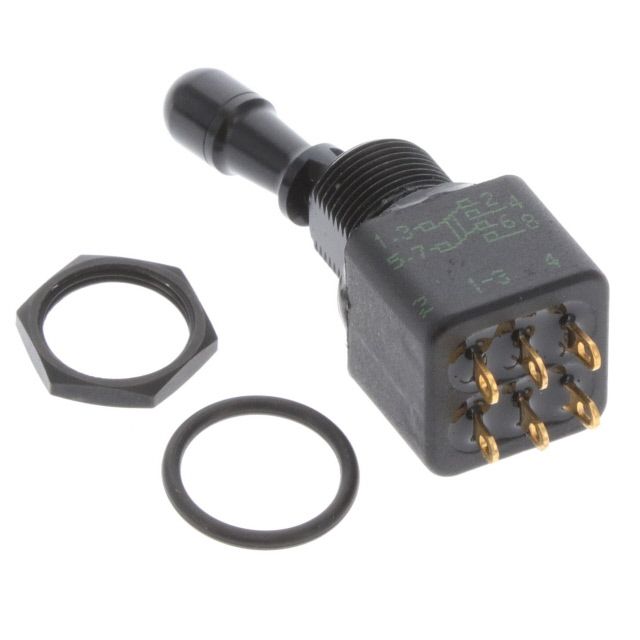

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 12000 | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Attachment Mounting Style | Panel Mount | |
| Electrical Pathway | DPDT | |
| Switch Operation Mode | On-On | |
| Ampere Capacity Rating | 4A (AC/DC) | |
| AC Voltage Max | 125 V | |
| DC Voltage Max | 30 V | |
| Activator Mechanism Type | Locking Lever | |
| Activator Arm Length | 19.40mm | |
| Backlighting Feature | Non-Illuminated | |
| LED Illumination Shades | - | |
| Standard Illumination Volts | - | |
| Lead Termination Type | PC Pin | |
| Mount Cutout Specs | Circular - 12.50mm Dia | |
| Insulator Thread Pattern | 15/32-32 | |
| Dust Water Resistance Rating | - | |
| Key Product Highlights | Epoxy Sealed Terminals | |
| Ambient Temp Range | -40°C ~ 85°C |
Description
Engineered with an actuator length of 19.40mm to provide sufficient interaction range. Incorporates a Locking Lever actuator type to fulfill the desired function. Crafted with a bushing thread dimension of 15/32-32 to guarantee a secure connection. Configured for circuit type described as DPDT. Sets the ampere rating to 4A (AC/DC). Equipped with features categorized as Epoxy Sealed Terminals. Provides Non-Illuminated brightness for improved visibility. Mounting configuration Panel Mount for structural stability. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Specifications of the cutout Circular - 12.50mm Dia for accurate mounting. Product status Active concerning availability and lifecycle. Classification series for the product or component 12000. Modification in operation mode On-On for electrical optimization. Type of termination PC Pin for connector or device. The highest AC voltage specification 125 V for the device. The highest DC voltage specification 30 V for components.
