Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | MT | |
| IC Encapsulation Type | Box | |
| Availability Status | Active | |
| Attachment Mounting Style | Panel Mount | |
| Electrical Pathway | SPDT | |
| Switch Operation Mode | On-On | |
| Ampere Capacity Rating | 6A (AC), 4A (DC) | |
| AC Voltage Max | - | |
| DC Voltage Max | 30 V | |
| Activator Mechanism Type | Paddle | |
| Activator Arm Length | 16.32mm | |
| Backlighting Feature | Non-Illuminated | |
| LED Illumination Shades | - | |
| Standard Illumination Volts | - | |
| Lead Termination Type | Solder Lug | |
| Mount Cutout Specs | Circular - 17.65mm Dia | |
| Insulator Thread Pattern | 11/16-28 | |
| Dust Water Resistance Rating | IP68 - Dust Tight, Waterproof | |
| Key Product Highlights | Black Actuator | |
| Ambient Temp Range | -40°C ~ 85°C |
Description

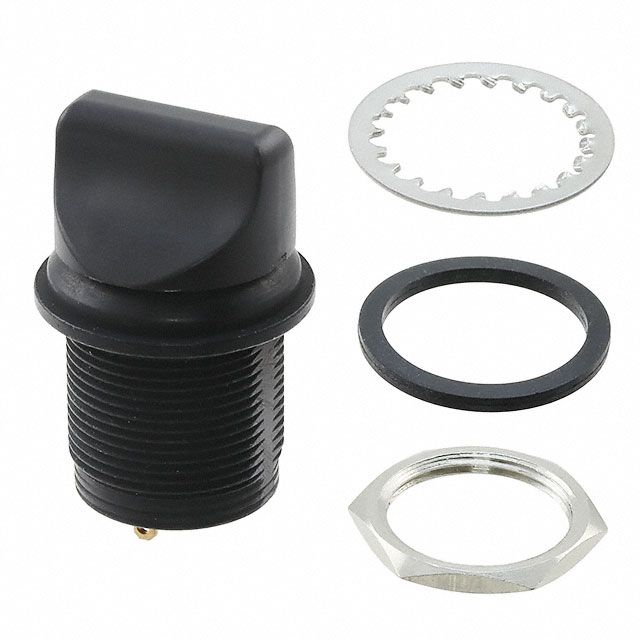

Engineered with an actuator length of 16.32mm to provide sufficient interaction range. Incorporates a Paddle actuator type to fulfill the desired function. Crafted with a bushing thread dimension of 11/16-28 to guarantee a secure connection. Configured for circuit type described as SPDT. Sets the ampere rating to 6A (AC), 4A (DC). Equipped with features categorized as Black Actuator. Provides Non-Illuminated brightness for improved visibility. Rated with IP IP68 - Dust Tight, Waterproof to safeguard against dust and moisture penetration. Mounting configuration Panel Mount for structural stability. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Box for safeguarding or transporting components. Specifications of the cutout Circular - 17.65mm Dia for accurate mounting. Product status Active concerning availability and lifecycle. Classification series for the product or component MT. Modification in operation mode On-On for electrical optimization. Type of termination Solder Lug for connector or device. The highest DC voltage specification 30 V for components.
