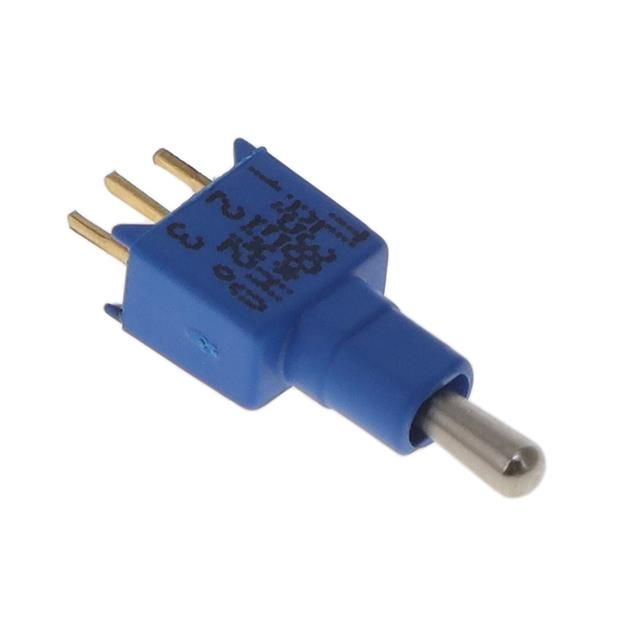

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | TL | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Attachment Mounting Style | Through Hole | |
| Electrical Pathway | SPDT | |
| Switch Operation Mode | On-Off-Mom | |
| Ampere Capacity Rating | 0.4VA (AC/DC) | |
| AC Voltage Max | 20 V | |
| DC Voltage Max | 20 V | |
| Activator Mechanism Type | Standard Round | |
| Activator Arm Length | 5.30mm | |
| Backlighting Feature | Non-Illuminated | |
| LED Illumination Shades | - | |
| Standard Illumination Volts | - | |
| Lead Termination Type | PC Pin | |
| Mount Cutout Specs | - | |
| Insulator Thread Pattern | Unthreaded | |
| Dust Water Resistance Rating | - | |
| Key Product Highlights | Epoxy Sealed Terminals | |
| Ambient Temp Range | -30°C ~ 85°C |
Description
Engineered with an actuator length of 5.30mm to provide sufficient interaction range. Incorporates a Standard Round actuator type to fulfill the desired function. Crafted with a bushing thread dimension of Unthreaded to guarantee a secure connection. Configured for circuit type described as SPDT. Sets the ampere rating to 0.4VA (AC/DC). Equipped with features categorized as Epoxy Sealed Terminals. Provides Non-Illuminated brightness for improved visibility. Mounting configuration Through Hole for structural stability. Temperature range -30°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Classification series for the product or component TL. Modification in operation mode On-Off-Mom for electrical optimization. Type of termination PC Pin for connector or device. The highest AC voltage specification 20 V for the device. The highest DC voltage specification 20 V for components.
