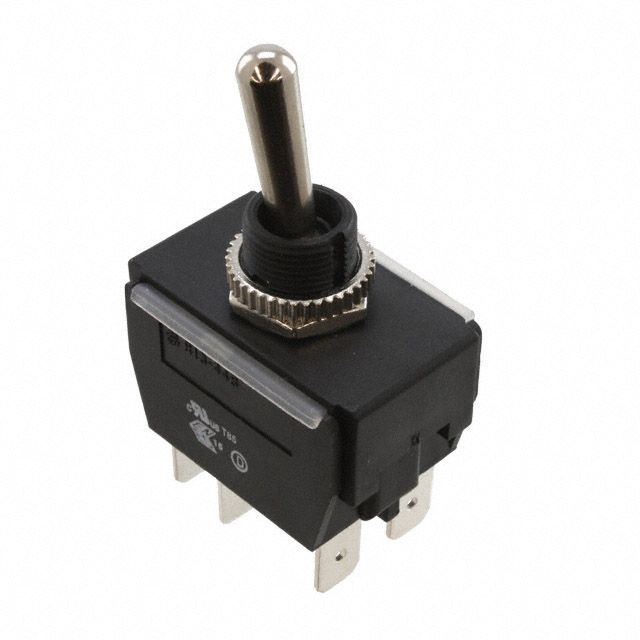

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | Tariff may apply if shipping to the United States | |
| Product Series Line | GTS448 | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Attachment Mounting Style | Panel Mount | |
| Electrical Pathway | DPDT | |
| Switch Operation Mode | On-Mom | |
| Ampere Capacity Rating | 12A (AC) | |
| AC Voltage Max | 250 V | |
| DC Voltage Max | - | |
| Activator Mechanism Type | Standard Round | |
| Activator Arm Length | 17.50mm | |
| Backlighting Feature | Non-Illuminated | |
| LED Illumination Shades | - | |
| Standard Illumination Volts | - | |
| Lead Termination Type | Quick Connect - 0.250" (6.3mm) | |
| Mount Cutout Specs | Circular - 12.20mm Dia | |
| Insulator Thread Pattern | 15/32-32 | |
| Dust Water Resistance Rating | IP56 - Dust Protected, Water Resistant | |
| Key Product Highlights | - | |
| Ambient Temp Range | 0°C ~ 85°C |
Description
Engineered with an actuator length of 17.50mm to provide sufficient interaction range. Incorporates a Standard Round actuator type to fulfill the desired function. Crafted with a bushing thread dimension of 15/32-32 to guarantee a secure connection. Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Configured for circuit type described as DPDT. Sets the ampere rating to 12A (AC). Provides Non-Illuminated brightness for improved visibility. Rated with IP IP56 - Dust Protected, Water Resistant to safeguard against dust and moisture penetration. Mounting configuration Panel Mount for structural stability. Temperature range 0°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Specifications of the cutout Circular - 12.20mm Dia for accurate mounting. Product status Active concerning availability and lifecycle. Classification series for the product or component GTS448. Modification in operation mode On-Mom for electrical optimization. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. Type of termination Quick Connect - 0.250" (6.3mm) for connector or device. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications. The highest AC voltage specification 250 V for the device.
