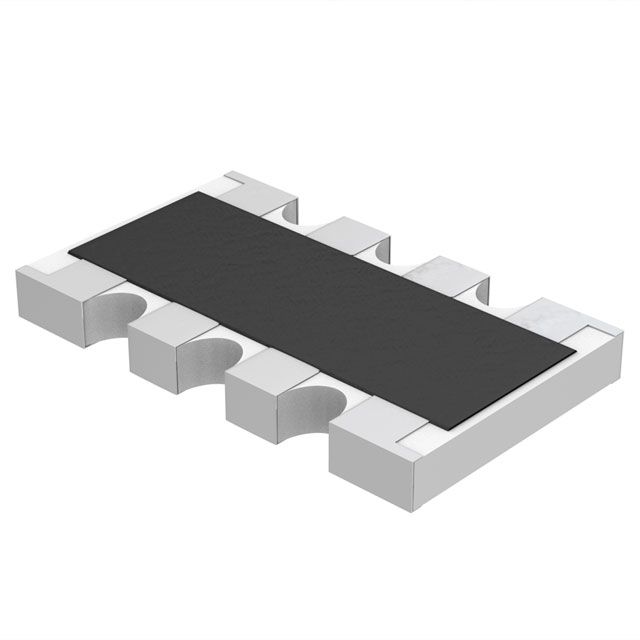

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | MNR | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Circuit Configuration Style | Isolated | |
| Ohm Value Specification | 1M | |
| Accuracy Tolerance Percentage | ±5% | |
| Resistor Component Total | 4 | |
| Resistor Pair Balance | - | |
| Ratio Stability Over Time | - | |
| IC Pin Total | 8 | |
| Wattage per Component | 125mW | |
| Temp Drift Factor | ±200ppm/°C | |
| Ambient Temp Range | -55°C ~ 125°C | |
| Quality Grade Level | Automotive | |
| Certification Qualification | AEC-Q200 | |
| Intended Uses | - | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | 2012, Convex, Long Side Terminals | |
| Vendor Package Type | - | |
| Package Size Specs | 0.205" L x 0.122" W (5.20mm x 3.10mm) | |
| Maximum Mounted Height | 0.026" (0.65mm) |
Description
Employs a circuit variation identified as Isolated. Evaluated as Automotive grade for quality control. Maximum installed height of 0.026" (0.65mm) for components affixed to the board. Mounting configuration Surface Mount for structural stability. Overall number of pins 8 for connectors or integrated circuits. Overall total of resistors 4 for circuit design purposes. Temperature range -55°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 2012, Convex, Long Side Terminals that offers mechanical and thermal protection. Energy per unit 125mW for evaluating modular systems. Certification AEC-Q200 for compliance with testing or regulatory standards. Ohmic resistance value 1M for accurate electrical information. Classification series for the product or component MNR. Details on package size 0.205" L x 0.122" W (5.20mm x 3.10mm) for electrical or mechanical components. Measurement dimensions 0.205" L x 0.122" W (5.20mm x 3.10mm) for component specifications. The temperature drift factor ±200ppm/°C that guarantees performance consistency. Precision tolerance level ±5% in manufacturing processes.
