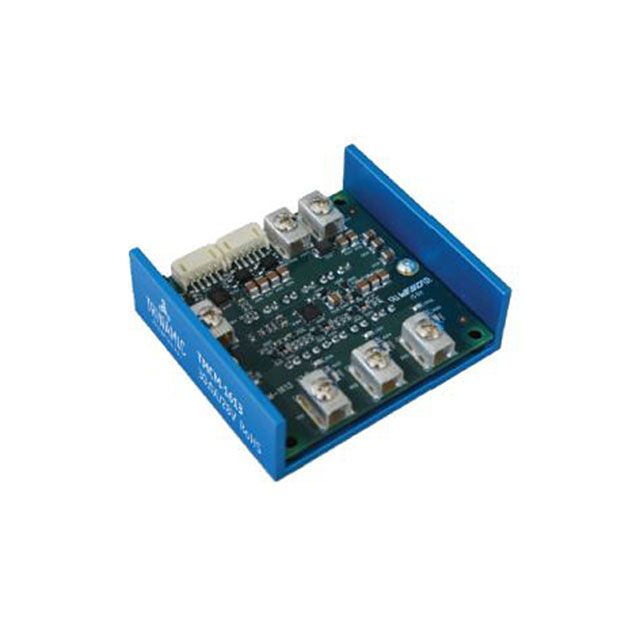

Name: TMCM-1613 | ANALOG DEVICES INC./MAXIM INTEGRATED | Partskeys
Brand: ANALOG DEVICES INC./MAXIM INTEGRATED

Home Products Stepper Motors Drivers And Linear Actuators Motor Driver Modules Analog Devices Incmaxim Integrated TMCM1613

Attribute

Description

Manufacturer Part Number

TMCM-1613

Manufacturer

ANALOG DEVICES INC./MAXIM INTEGRATED

Description

BOARD CONTROL BLDC MOTOR 500W, 2

Manufacturer Lead Time

--

Our team will assist you shortly.

Product Attributes

Type	Description	Select All
Category	Stepper Motors Drivers and Linear Actuators Motor Driver Modules
Import Duty Classification	-
Product Series Line	TMCM
IC Encapsulation Type	Bulk
Availability Status	Obsolete
Device Type Classification	Board
Electric Motor Design	Brushless (BLDC)
Motor Control Mechanism	Brushless
Actuator Motor Count	1
Output Load Voltage	24V
Output Delivery Amps	30A
Load Power Consumption	-
Power Supply Voltage	24VDC
User Interface Type	SCI / UART, Step / Direction
Attachment Mounting Style	Chassis Mount
Ambient Temp Range	-
Key Product Highlights	-
Matching Accessory Items	-

Description

Operates with a control or drive type labeled as Brushless. Yields output current measured at 30A. Designed for SCI / UART, Step / Direction ease of use and user interaction. Type of motor Brushless (BLDC) for mechanical functionality. Mounting configuration Chassis Mount for structural stability. Overall motors 1 for mechanical uses. Type of housing Bulk for safeguarding or transporting components. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component TMCM. Voltage requirement 24VDC for electrical specifications. Type classification Board for specifications. Load voltage 24V required for devices. Voltage supply 24VDC for device operation.
