Attribute
Description
Manufacturer Part Number
2424
Manufacturer
Description

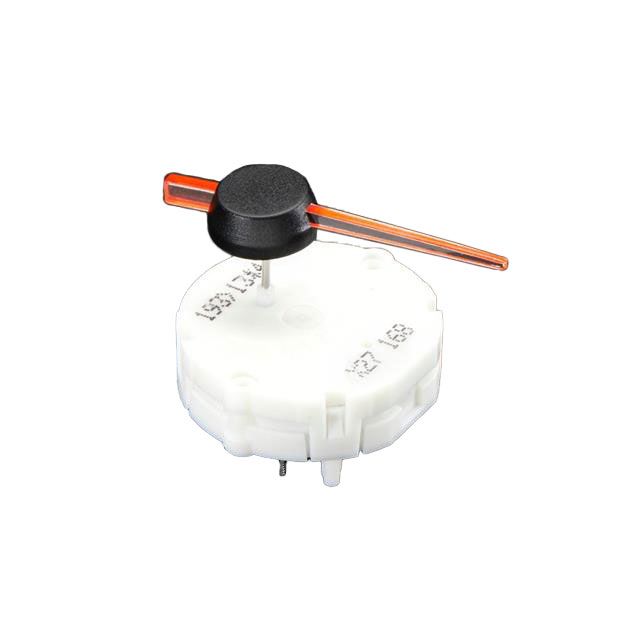

AUTOMOTIVE GAUGE STEPPER MOTOR
Manufacturer Lead Time
--
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Device Type Classification | - | |
| Electromagnetic Coil Design | Bipolar | |
| Rated Operating Voltage | - | |
| Ampere Capacity Rating | - | |
| Revolution Step Count | 600.0 | |
| Stepper Motor Step Degrees | 315° | |
| Precision Level | - | |
| Holding Torque Rating | - | |
| Package Size Specs | Round - 1.299" Dia (33.00mm) | |
| Motor Frame Standard | 17 | |
| Shaft Rod Width | - | |
| Shaft Bearing Total Length | - | |
| Screw Hole Pitch | - | |
| Lead Termination Type | PC Pin | |
| Ambient Temp Range | - | |
| Inductor Resistance Value | 260 Ohms | |
| Key Product Highlights | - |
Description
Features a coil resistance measured at 260 Ohms to maintain consistent electromagnetic performance. Designed with a coil type classified as Bipolar for optimal electrical efficiency. NEMA frame standard 17 for typical motor design. Type of housing Bulk for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Details on package size Round - 1.299" Dia (33.00mm) for electrical or mechanical components. Measurement dimensions Round - 1.299" Dia (33.00mm) for component specifications. Step angle 315° related to stepper motors. Total steps per revolution 600.0 for rotating mechanisms. Type of termination PC Pin for connector or device.
