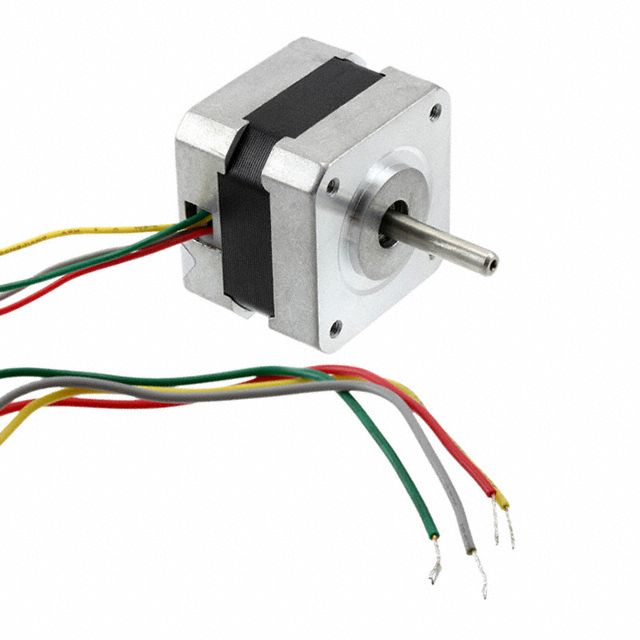

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Device Type Classification | Hybrid | |
| Electromagnetic Coil Design | Bipolar | |
| Rated Operating Voltage | 12VDC | |
| Ampere Capacity Rating | 350 mA | |
| Revolution Step Count | 200.0 | |
| Stepper Motor Step Degrees | 1.8° | |
| Precision Level | - | |
| Holding Torque Rating | 28 / 197 | |
| Package Size Specs | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | |
| Motor Frame Standard | 17 | |
| Shaft Rod Width | 0.197" (5.00mm) | |
| Shaft Bearing Total Length | 0.945" (24.00mm) | |
| Screw Hole Pitch | 1.220" (30.99mm) | |
| Lead Termination Type | Wire Leads | |
| Ambient Temp Range | 0°C ~ 50°C | |
| Inductor Resistance Value | 35 Ohms | |
| Key Product Highlights | Flatted Shaft |
Description
Features a coil resistance measured at 35 Ohms to maintain consistent electromagnetic performance. Designed with a coil type classified as Bipolar for optimal electrical efficiency. Sets the ampere rating to 350 mA. Defines the shaft diameter as 0.197" (5.00mm). Equipped with features categorized as Flatted Shaft. Total length of the shaft and bearing 0.945" (24.00mm) for smooth assembly. Spacing between mounting holes 1.220" (30.99mm) for correct alignment. NEMA frame standard 17 for typical motor design. Temperature range 0°C ~ 50°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Details on package size Square - 1.654" x 1.654" (42.00mm x 42.00mm) for electrical or mechanical components. Measurement dimensions Square - 1.654" x 1.654" (42.00mm x 42.00mm) for component specifications. Step angle 1.8° related to stepper motors. Total steps per revolution 200.0 for rotating mechanisms. Type of termination Wire Leads for connector or device. Torque retention 28 / 197 in oz-in/mNm for reliability. Type classification Hybrid for specifications. The operating voltage rating of the device 12VDC.
