Stock:
Distributor: 114
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 5,520.67000 | ₹ 5,520.67 |
| 6 | ₹ 5,276.81000 | ₹ 31,660.86 |
| 12 | ₹ 5,126.40000 | ₹ 61,516.80 |
| 25 | ₹ 4,984.00000 | ₹ 1,24,600.00 |
| 50 | ₹ 4,784.64000 | ₹ 2,39,232.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |

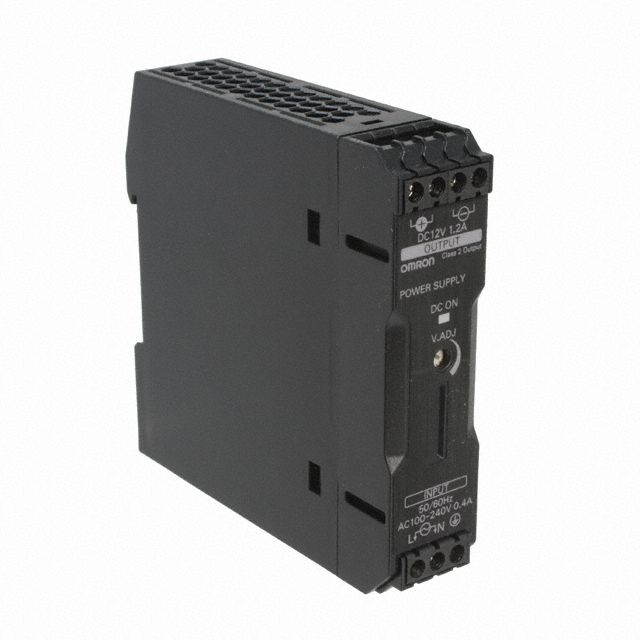

| Product Series Line | S8VK-G (15W) | |
| IC Encapsulation Type | Box | |
| Availability Status | Active | |
| Entry Signal Category | AC | |
| Signal Output Quantity | 1 | |
| AC Input Voltage Rating | 85 ~ 264 VAC | |
| Min DC Input Volts | - | |
| Max DC Input Volts | - | |
| First Rail Output Volts | 12V | |
| Second Rail Output Volts | - | |
| Third Rail Output Volts | - | |
| Fourth Rail Output Volts | - | |
| Fifth Rail Output Volts | - | |
| Sixth Rail Output Volts | - | |
| Peak Output Current | 1.2A | |
| Wattage Power Level | 15W | |
| Isolation Barrier Voltage | 3 kV | |
| Intended Uses | ITE (Commercial) | |
| Performance Efficiency Rating | 77% | |
| Ambient Temp Range | -40°C ~ 75°C (With Derating) | |
| Key Product Highlights | Adjustable Output, Load Sharing, Universal Input | |
| Package Size Specs | 3.54" L x 0.89" W x 3.54" H (90.0mm x 22.5mm x 90.0mm) | |
| Certification Body | CE, cULus, cURus, VDE | |
| Compliance Standard ID | - |
Description
Supports an AC input voltage rated at 85 ~ 264 VAC for extensive operational compatibility. Perfectly designed for situations involving ITE (Commercial). Complies with the criteria of entities acknowledged as CE, cULus, cURus, VDE. Supplies peak output current defined as 1.2A. Offers an efficiency rating calculated at 77%. Equipped with features categorized as Adjustable Output, Load Sharing, Universal Input. Configured with AC input type for diverse applications. The input voltage established at 85 ~ 264 VAC for reliable performance. Overall outputs 1 for device connections. Temperature range -40°C ~ 75°C (With Derating) for environmental conditions impacting thermal efficiency. Voltage 12V for optimal output electric potential. Type of housing Box for safeguarding or transporting components. Power measured in watts 15W for optimal operation. Product status Active concerning availability and lifecycle. Classification series for the product or component S8VK-G (15W). Details on package size 3.54" L x 0.89" W x 3.54" H (90.0mm x 22.5mm x 90.0mm) for electrical or mechanical components. Measurement dimensions 3.54" L x 0.89" W x 3.54" H (90.0mm x 22.5mm x 90.0mm) for component specifications. Isolation voltage 3 kV for electrical safety. Output 1 voltage 12V across different outputs.
